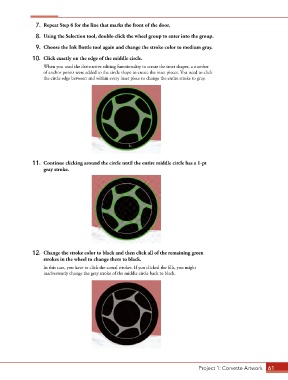

7. Repeat Step 6 for the line that marks the front of the door.
8. Using the Selection tool, double-click the wheel group to enter into the group.
9. Choose the Ink Bottle tool again and change the stroke color to medium gray.
10. Click exactly on the edge of the middle circle.
When you used the destructive editing functionality to create the inset shapes, a number
of anchor points were added to the circle shape to create the inset pieces. You need to click
the circle edge between and within every inset piece to change the entire stroke to gray.
11. Continue clicking around the circle until the entire middle circle has a 1-pt
gray stroke.
12. Change the stroke color to black and then click all of the remaining green
strokes in the wheel to change them to black.
In this case, you have to click the actual strokes. If you clicked the fills, you might
inadvertently change the gray stroke of the middle circle back to black.
Project 1: Corvette Artwork 61
